Cotton Fabrics
Configuration is matched to yarn count, fabric structure, reed width and production target.
Air Jet Loom Manufacturer · Textile Machinery
MG9200 Max Air Jet Loom
The JETMECH MG9200 Max is a high-speed shuttleless air jet weaving machine for cotton, blended fabrics, denim and home textile production. Each loom configuration is matched to the fabric, reed width, shedding system, nozzle setup and factory requirements.
Air Jet Loom
Weaving Machine
Shuttleless Loom
Textile Machinery
MG9200 Max
Configuration support for international textile weaving mills.
ApplicationCotton, blends, denim and home textiles
Main Motor5 kW servo direct drive
SheddingCrank / Cam / E-dobby by order
Technical & Service SupportOnline technical consultation, after-sales service and spare parts supply
Textile Weaving Applications
High-Speed Air Jet Weaving Machine for Modern Textile Mills
This air jet loom combines stable pneumatic weft insertion with a heavy machine body, servo drive and project-based configuration. It is positioned as industrial textile machinery for weaving factories that need consistent production and clear export support.
Blended Fabrics
Air-system, shedding and tension settings can be discussed for blended-yarn weaving projects.
Denim Weaving
Stable beat-up force and a rigid machine structure support demanding denim production planning.
Home Textiles
Reed width and weaving configuration can be selected for applicable home textile fabric programs.
Machine Views
MG9200 Max Air Jet Loom Structure and Technology
Review the complete weaving machine, advanced air-tank frame and patented beating-shaft structure before confirming a project specification.

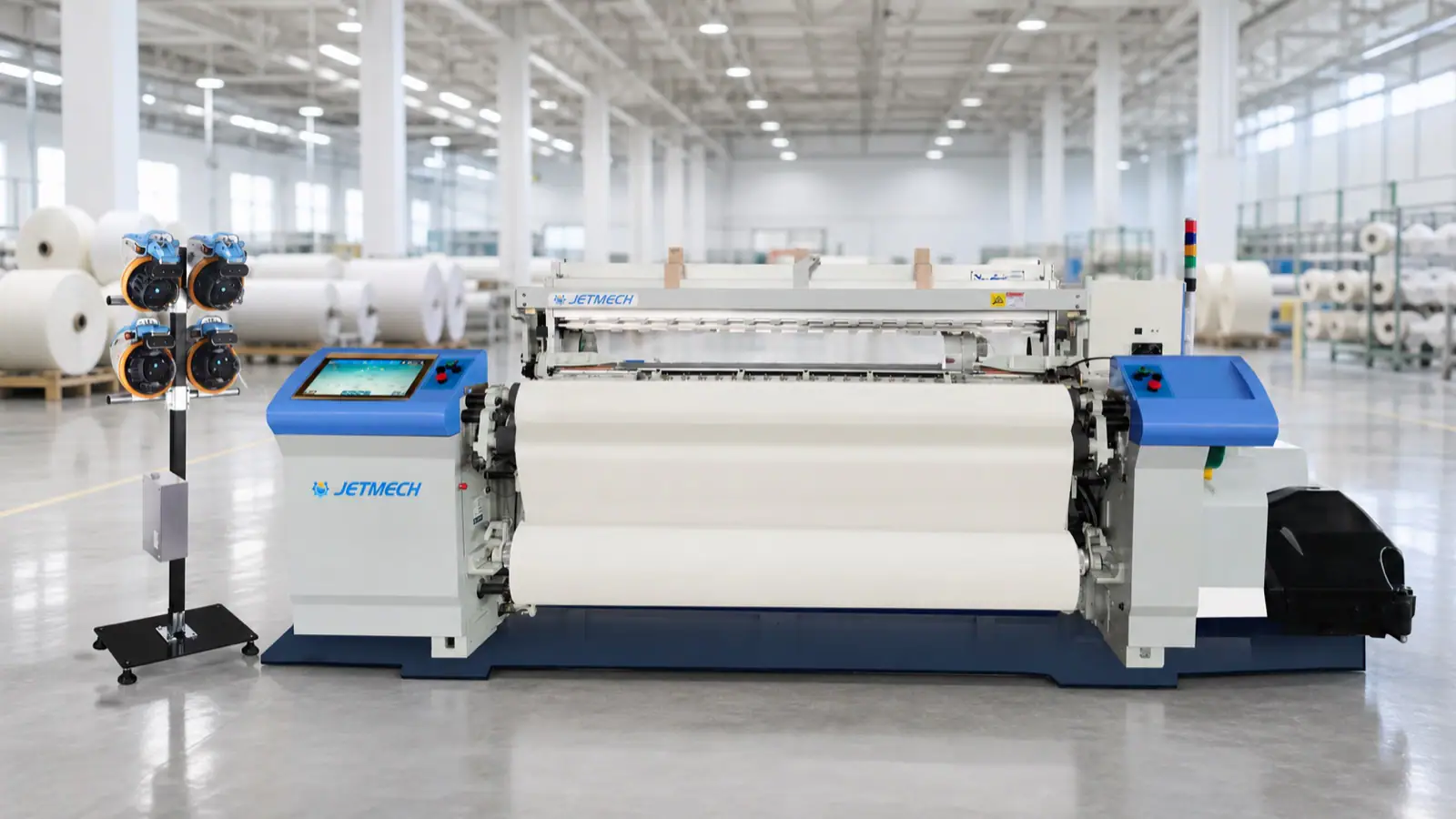

Complete Loom
MG9200 Max Overview
Full machine view showing the body, cloth area, and control side. Confirm final installation space from the approved machine layout.
Advanced Frame
Up to Five Side Air Tanks
Up to five side-mounted air tanks provide reserve-air capacity that helps reduce short-term pressure variation during weft insertion.
Patented System
Integrated Beating Shaft
Balanced force transmission supports fabric-density consistency and lower machine vibration.
MG9200 Max Specifications
Key Parameters for Air Jet Loom Selection
Final machine specifications are confirmed according to fabric, yarn, reed width, target output and factory requirements.
Reed Width190 / 280 cmOther reed widths by request.
SheddingCrank / CamElectronic dobby can be configured by order.
Nozzle / Color2N/2F or 4N/2FMaximum listed configuration: 8N/8F.
Main Motor5 kWServo direct-drive motor.
| Machine Body | Integrated heavy-duty frame designed for stable high-speed air-jet weaving. Final body dimensions and floor-fixing details are confirmed with the approved machine layout. |
|---|---|
| Beating Shaft | Patented coaxial central dynamic balance beating-shaft system. |
| Let-Off / Take-Up | Positive servo-motor let-off and servo-motor take-up systems. |
| Air System | Original Japanese SMC main and auxiliary solenoid valves with SMC pressure regulators. |
| Controller | 14-inch English HMI with intelligent electrical control. |
| Order Basis | Fabric type, yarn, reed width, shedding, nozzle configuration, quantity and production target. |
Air-System and Mechanical Components
Core Components for Stable Air-Jet Weaving
Selected components support shedding accuracy, controlled airflow, lower wear and reliable long-term textile production.

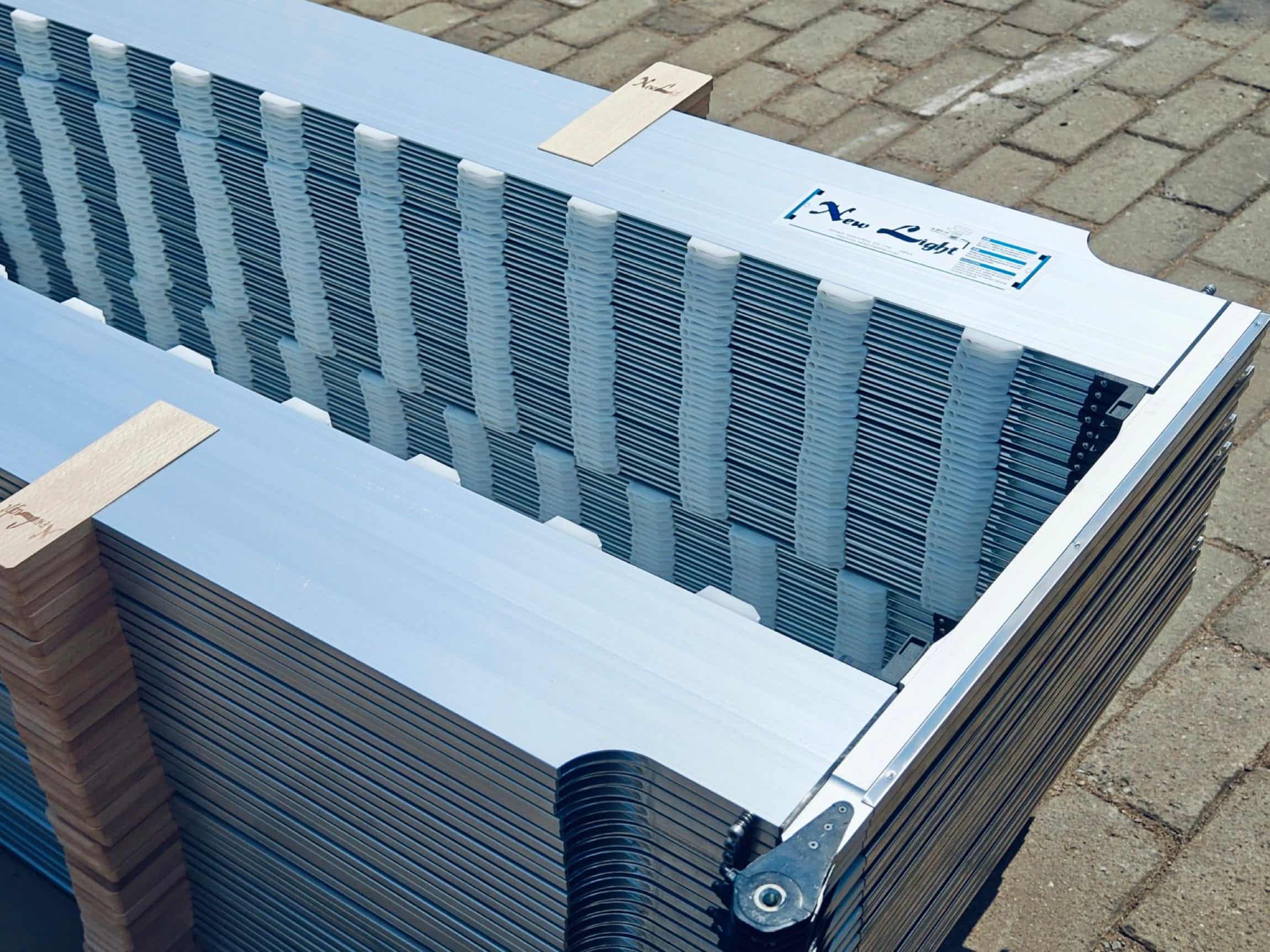

Shedding Frame
NEWLIGHT Heald Frames
Light, stable frames support shedding accuracy during continuous weaving.
Main Nozzle System
Direct-Mounted SMC Valve
Direct mounting supports faster airflow response and accurate nozzle control.

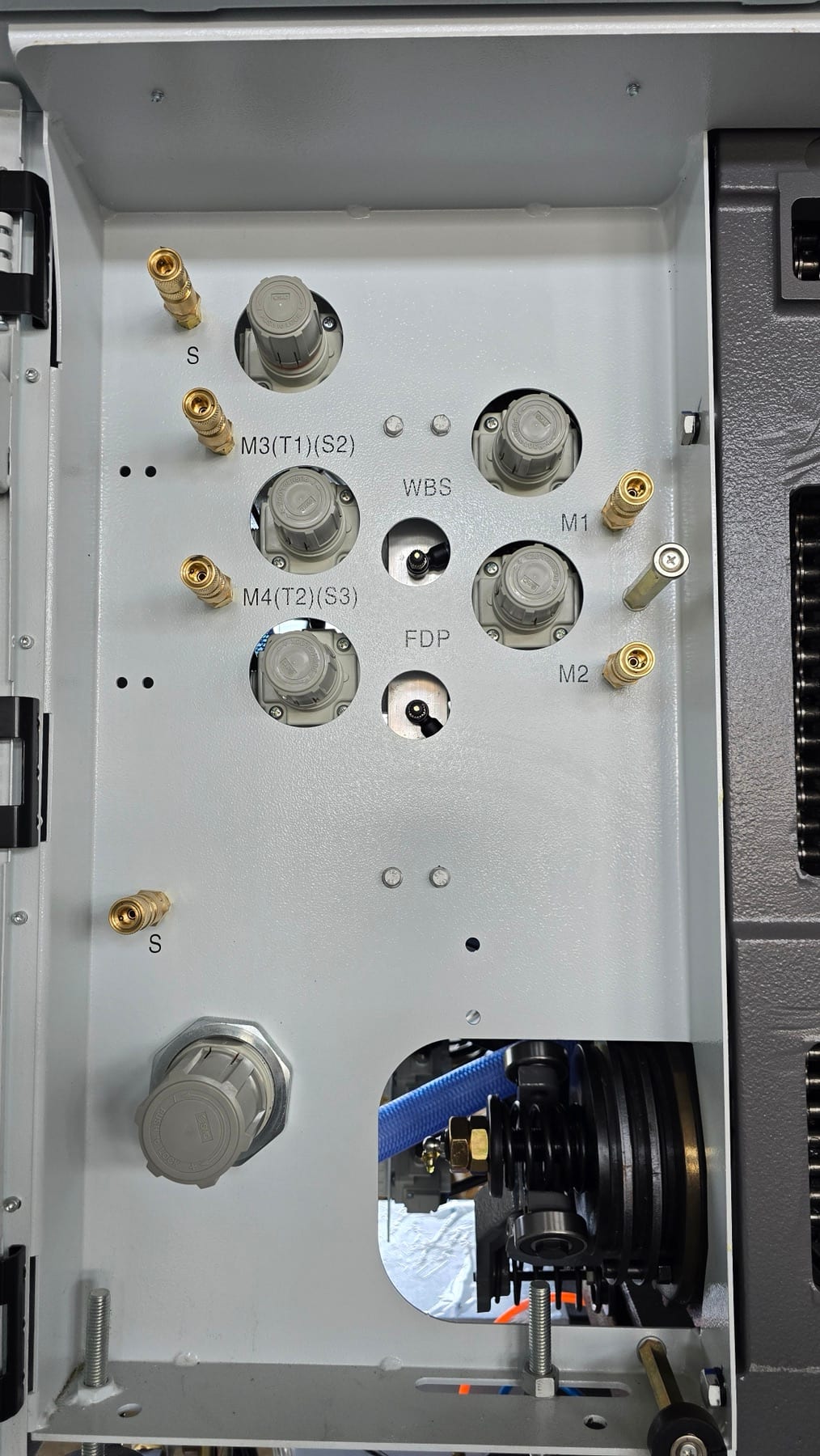

Air Pressure Control
SMC Pressure Regulators
Accurate pressure adjustment helps control air consumption and insertion stability.

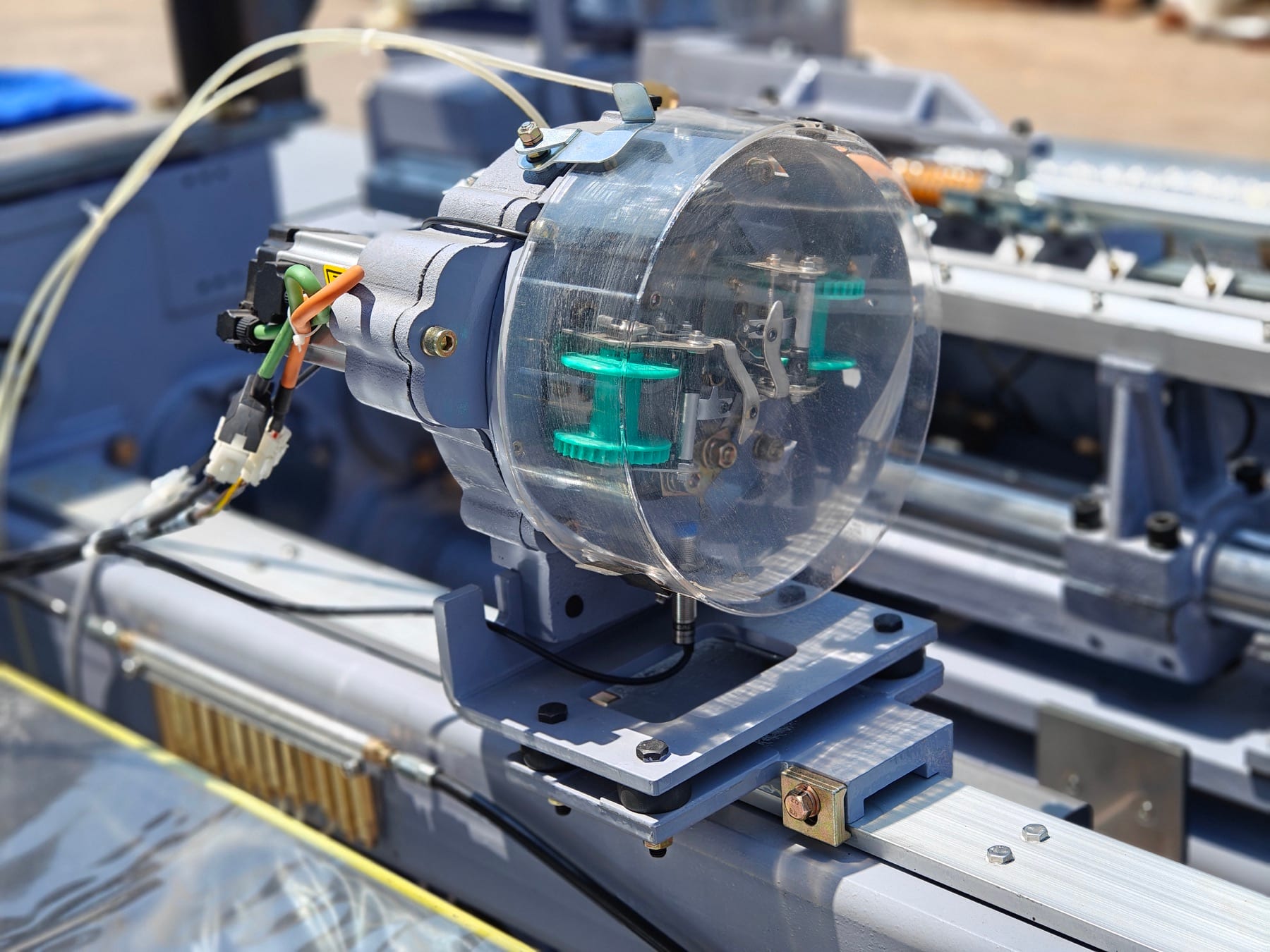

Selvedge Formation
Electronic Leno Device
Synchronized motion supports stable edge formation and cleaner fabric selvedges.
Patented Beating Shaft for Stable High-Speed Weaving
The integrated, dynamically balanced structure is designed to transmit beat-up force consistently across the reed width while reducing vibration and component load.
- Integrated shaft body improves rigidity across the weaving width.
- Balanced motion supports lower vibration and stable operation.
- Uniform beat-up force helps maintain consistent fabric density.
- Reduced bearing and gear load supports longer equipment life.
Buyer Information
MG9200 Max Air Jet Loom FAQs
Practical answers for textile machinery buyers preparing a machine specification and export quotation.
What fabrics can the MG9200 Max air jet loom weave?
The MG9200 Max is designed for cotton, blended fabrics, denim, home textiles and other suitable woven-fabric projects. Final configuration depends on yarn, fabric structure, reed width and production target.
Which reed widths and shedding systems are available?
The displayed configuration includes 190 cm and 280 cm reed widths, with other widths available by request. Crank and cam shedding are available, and an electronic dobby can be configured by order.
What information is needed for an MG9200 Max quotation?
Please provide fabric type, yarn specification, required reed width, shedding system, nozzle and color configuration, target output, machine quantity and factory requirements.
Request an MG9200 Max Configuration and Quotation
Share your fabric, yarn, reed width, shedding system, target output, machine quantity and destination country. JETMECH will prepare the air jet loom configuration basis for discussion.
