JTM508 Water Jet Loom
The JETMECH JTM508 is a configurable water jet weaving machine for polyester, nylon and other synthetic filament fabrics. Reed width, nozzle setup, shedding, let-off, take-up and motor type can be matched to each textile weaving project.
Water Jet Loom
Weaving Machine
Filament Weaving Loom
Textile Machinery
JTM508
Configuration support for synthetic filament weaving projects.
ApplicationPolyester, nylon and synthetic filament fabrics
Reed Width190–340 cm
Nozzle Option1P/2N or 2P/2N
Main Motor5.5 kW servo or AC motor
Textile Weaving Applications
Water Jet Weaving Machine for Synthetic Filament Fabrics
JTM508 water jet looms are configured for weaving factories processing hydrophobic filament yarns. This industrial textile machinery combines project-matched water-jet insertion, shedding, let-off, take-up and drive systems for practical production planning.
Nylon Fabrics
Nozzle, water-flow and tension requirements are discussed according to the nylon weaving project.
Synthetic Filaments
Water-jet insertion supports suitable continuous-filament fabric programs and high-efficiency weaving.
Project Matching
Reed width, shedding, let-off, take-up, motor and workshop conditions are confirmed before quotation.
Machine Views
JTM508 Machine Views and Heavy-Duty Frame
Review the complete water jet loom, service-side layout and reinforced frame structure before checking the technical specification.
Complete Loom

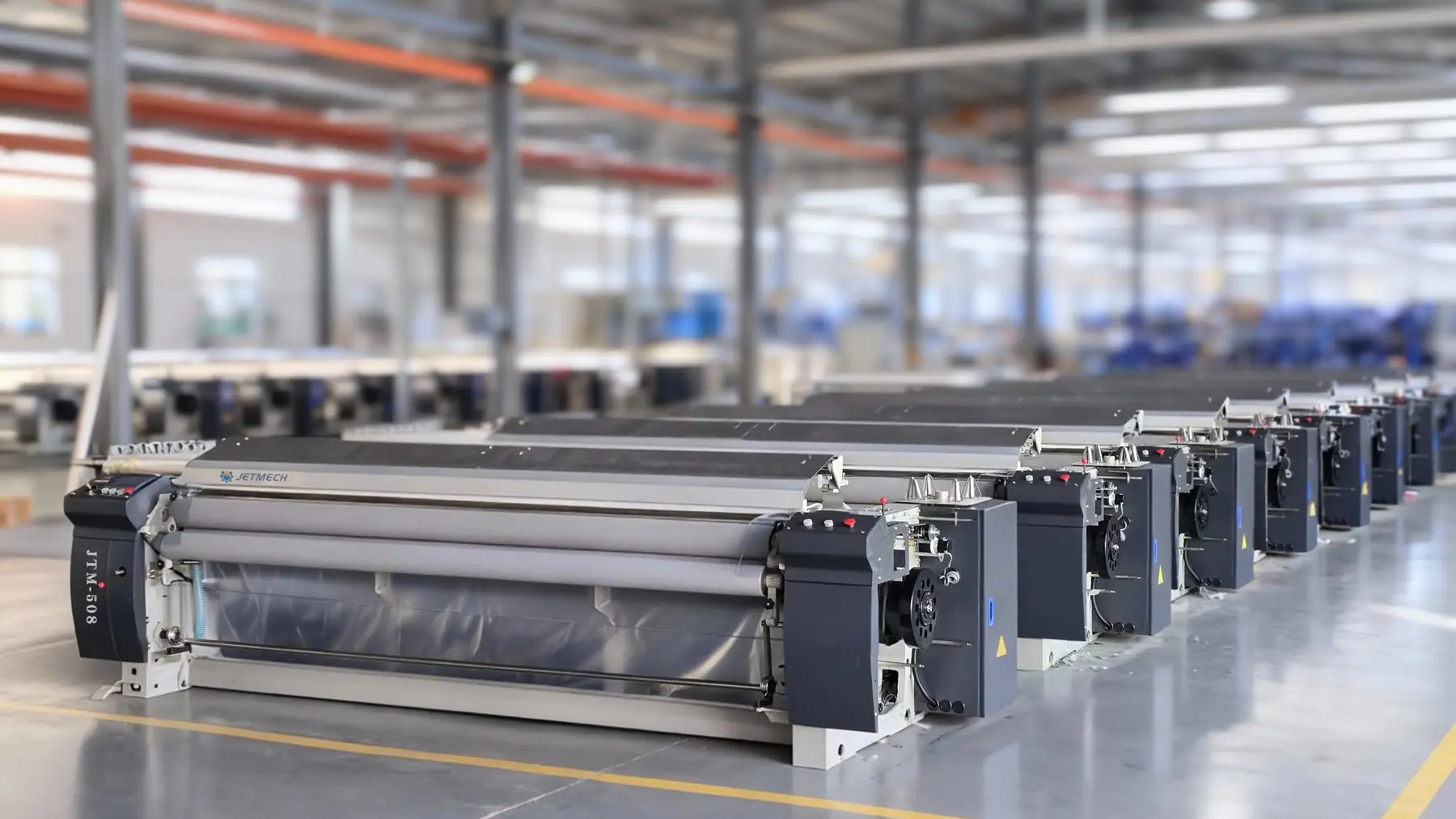

Front Machine View
Complete front view showing the loom body, cloth area, protective covers, and operator side.
Service Access
Left-Side Service View
This side view shows transmission-side access and frame alignment. Final installation clearance follows the approved machine layout.
Heavy-Duty Frame
Two Side Frames — 570 kg Combined Weight
The left and right side frames have a combined weight of 570 kg. Pentagonal connecting beams and eight floor anchor bolts help improve rigidity and operating stability.
JTM508 Specifications
Key Parameters for Water Jet Loom Selection
Final machine configuration is matched to fabric, yarn condition, reed width, nozzle layout, shedding system, motor and target output.
Reed Width190–340 cm190 / 210 / 230 / 260 / 280 / 340 cm.
Nozzle Option1P/2N1 pump / 2 nozzles; 2P/2N is also available.
SheddingCrank / CamElectronic dobby can be configured by order.
Main Motor5.5 kWServo motor or AC motor.
| Machine Body | Heavy-duty integrated side-frame structure, 88 cm body height, 570 kg combined weight for the left and right side frames, and HT250 casting standard. |
|---|---|
| Floor Fixing | Eight anchor bolts in total, four per side wall, for operating stability. |
| Weft Insertion | Plunger spring-pressure pump with stainless-steel or ceramic nozzles. |
| Let-Off / Take-Up | Mechanical or electronic let-off and take-up systems according to order. |
| Control | Full English HMI and intelligent operation system. |
| Order Basis | Fabric, reed width, nozzle quantity, shedding, motor, color, quantity and destination. |
Shedding System Options
Cam Shedding and Electronic Dobby Model Comparison
JTM508 can be matched with NPW410, NPW411 or LP409 cam shedding. NP5400D electronic dobby is available where wider pattern capability is required.
| Specification | NPW410 CAM | NPW411 CAM | NP5400D Electronic Dobby | LP409 CAM |
|---|---|---|---|---|
| Reed space | 190 cm – 360 cm | 190 cm – 360 cm | 190 cm – 390 cm | 190 cm – 360 cm |
| Reference maximum speed | 1000 rpm | 800 rpm | 750 rpm | 800 rpm |
| Pitch | 14 mm | 14 mm | 12 mm | 14 mm |
| Maximum heald frames | Up to 10 | 12 | Up to 16 | 12 |
| Heddle specification | 260 / 280 mm | 260 / 280 mm | 330 mm | 260 / 280 mm |
| Shedding amount | 56–113 mm | 56–113 mm | 58–142 mm | 56–113 mm |
| Pattern repeat | 12 picks | 12 picks | 12,800 picks | 10 / 12 picks |
The reference unit shown is NPW410. The listed values are shedding-unit reference specifications and do not replace the confirmed JTM508 loom reed width or final project specification.
Water-Jet Control and Drive Systems
Core Components for Stable Filament Weaving
Mechanical, control, feeding and drive components are organized for stable water-jet insertion and practical long-term operation.
Water-Jet Insertion
CNC Water Guide System
CNC-machined guides and ceramic nozzles support stable water velocity and flow accuracy.
Main Bearings
Original NSK / NACHI
Original Japanese bearings support reliable rotation, reduced wear and long-term operation.
Precise Fabric Control

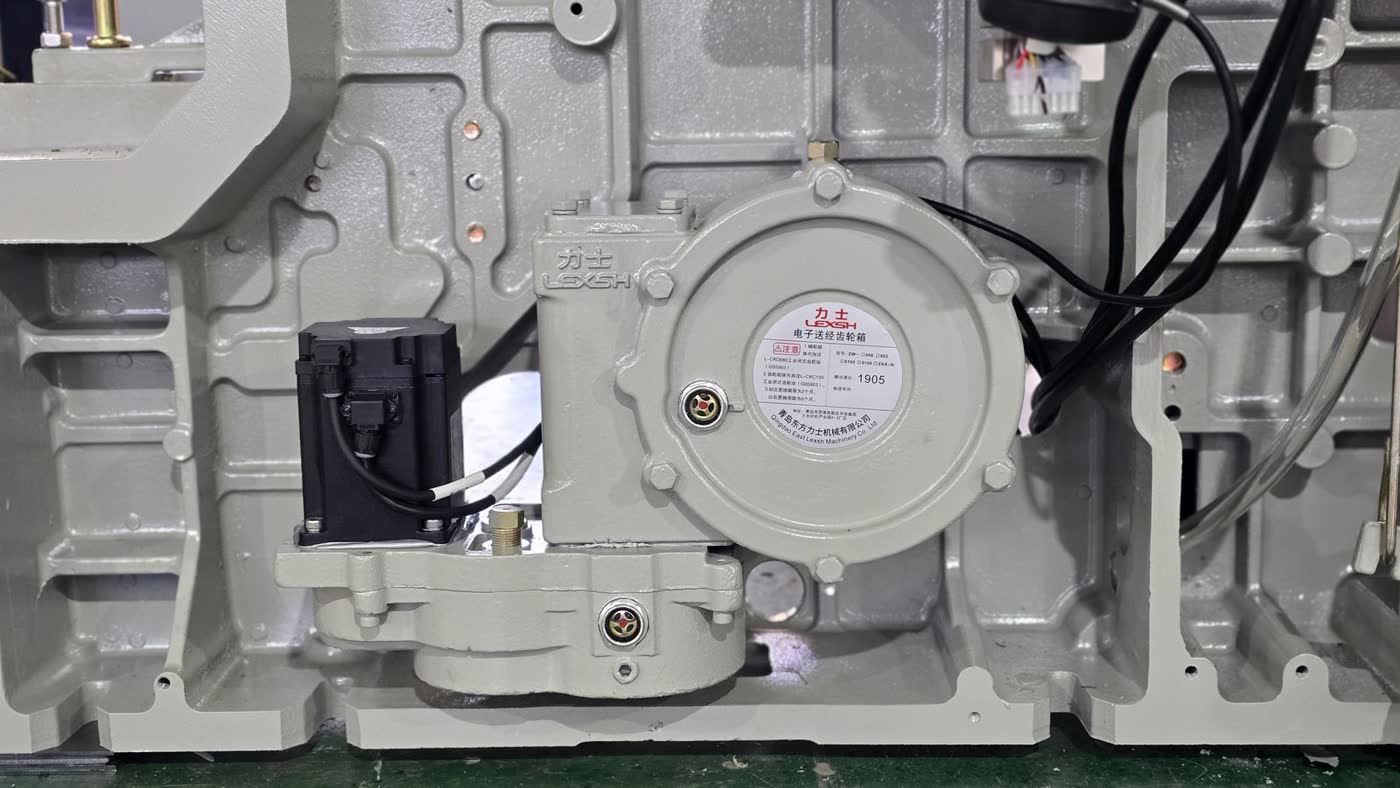

ELO / ETU System
Electronic let-off stabilizes warp tension while electronic take-up controls fabric density.
Drive System
5.5 kW Direct Drive
Stable torque and direct power transmission support efficient continuous weaving.
Buyer Information
JTM508 Water Jet Loom FAQs
Practical answers for textile machinery buyers selecting a water jet weaving machine and preparing an export quotation.
What fabrics can the JTM508 water jet loom weave?
The JTM508 is designed primarily for hydrophobic synthetic filament fabrics such as polyester and nylon. Water-jet insertion is generally not the first choice for cotton, viscose, or other water-absorbent yarns. Final configuration is selected according to fabric, yarn condition, reed width, and target output.
Which reed widths and nozzle options are available?
Available reed widths are 190, 210, 230, 260, 280 and 340 cm. The listed nozzle configurations are 1 pump with 2 nozzles or 2 pumps with 2 nozzles.
Which shedding systems can be configured on the JTM508?
The JTM508 can use crank or cam shedding. NPW410, NPW411 and LP409 cam options are listed, while the NP5400D electronic dobby is available when wider pattern capability is required.
Request a JTM508 Configuration and Quotation
Share your filament fabric, yarn, reed width, nozzle option, shedding system, target output, machine quantity and destination country. JETMECH will prepare the water jet loom configuration basis for discussion.
